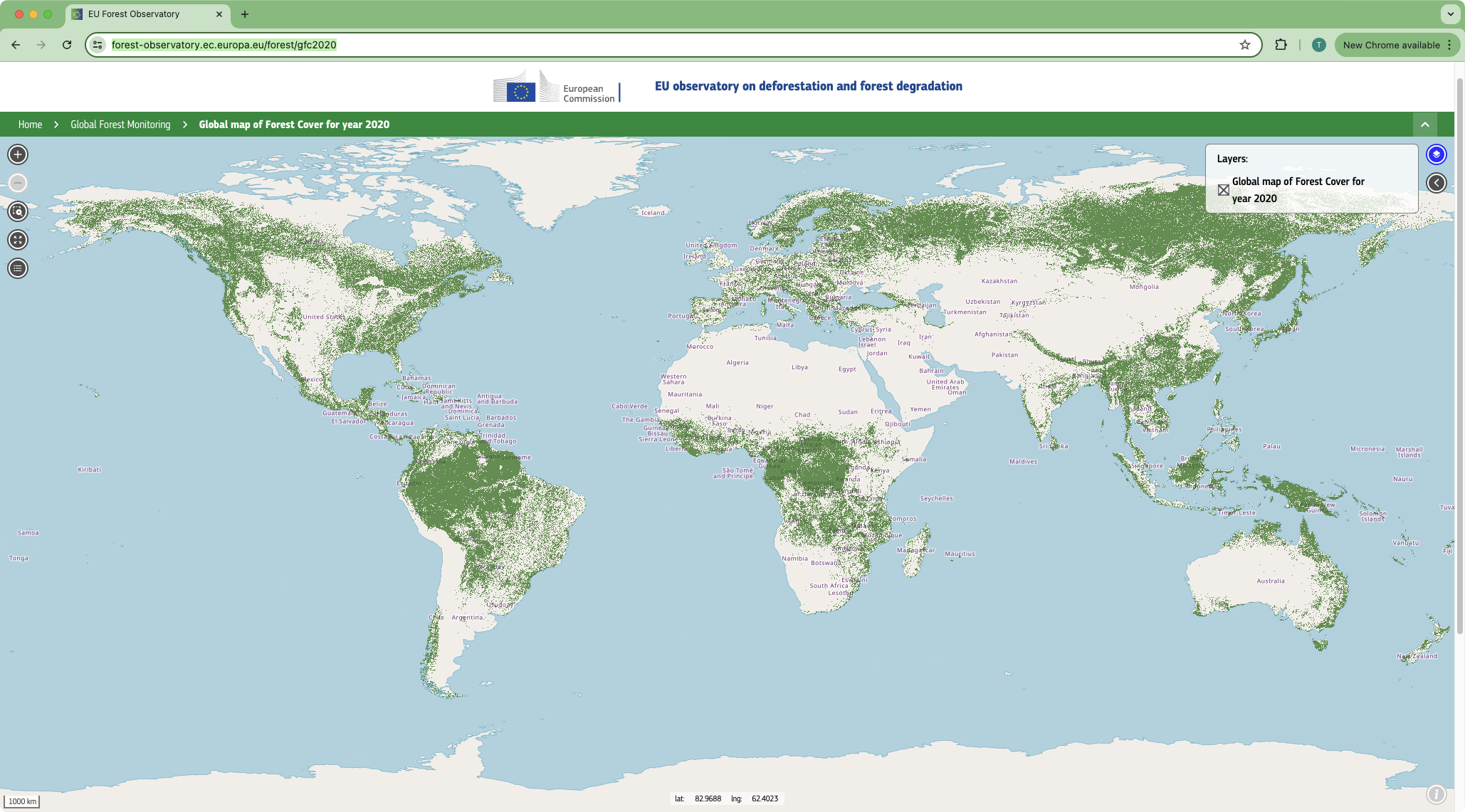

In recent years, there has been an explosion of high-resolution raster datasets that characterize the Earth’s surface. An example of this is the Global map of Forest Cover for year 2020 (GFC2020).
The GFC2020 dataset is described as serving to “define the extent of tree cover for year 2020 at 10 m spatial resolution”1, and it shows variations in forested land in great detail. However, using the dataset to accurately answer a seemingly simple question can be quite challenging. For example:
What is the total area of forest in Iceland?
To determine the total area, can’t we just simply count up the forest pixels and multiply by 10m squared?
\[A_{forest} = n_{forest pixels} \cdot (10m)^2 \]
Nope.
There are at least two problems with that approach.
The GFC2020 dataset uses a coordinate reference system (CRS) of EPSG:4326. This is a fairly common CRS used by global datasets. EPSG:4326 has axes of geodetic latitude and geodetic longitude measured in units of degrees, which is an angle measurement. Typically, the area of something on the Earth’s surface is not measured in unit of degrees squared, but rather a unit of length squared2.
With a little sleuthing3 it can be determined that the unit of measure is an angle in degrees:
AXIS["geodetic latitude (Lat)",north,
ORDER[1],
ANGLEUNIT["degree",0.0174532925199433]],
AXIS["geodetic longitude (Lon)",east,
ORDER[2],
ANGLEUNIT["degree",0.0174532925199433]],and that the pixel size is much smaller than a degree:
Pixel Size = (0.000089831528412,-0.000089831528412)These angles can be converted to distances, but the length of a degree of longitude varies with latitude.
The surface area of a sphere (or ellipsoid) bulges out, so it is greater than a planar area between the same boundaries. The difference becomes more signficant as the curvature increases. For more details, read up on spherical excess.
What about using a library to reproject the raster image to an equal-area projection? That may be a viable solution, but the data will be altered by resampling (usually nearest neighbor resampling for categorical data), which changes the resulting area calculation4. And it may be challenging from a computation and storage standpoint, depending on the size of dataset. And you will need to install a projection library, which a complication that I would like to avoid.
So how can you go about accurately determining the areas of regions on the Earth’s surface? That’s what this post will cover, at least for a certain class of rectangular areas. We’ll start with the relevant mathematical equations and show how they can be implemented with standard Python libraries.
There are many software libraries and tools that can help with calculating areas on the Earth. Many are based on the open source PROJ software, which provides generic coordinate transformation functionality via both command line applications and an API to power higher-level tools such as GDAL, pyproj, Rasterio, GeoPandas, PostGIS, QGIS, and many, many more… use them if you can! These tools are far more flexible (and rigorously tested) than the approach I describe here. However, that flexibility results in a complicated codebase which few people understand (and can contribute to). Even if open source, they are black box systems for most people. This post attempts to transparently explain the “how”, but for a very narrow slice of functionality provided by PROJ-based tools.
This post shows how to calculate areas for datasets/images that use a (normal) cylindrical projection. This class of projections has axes aligned with lines of constant latitude and longitude, and it includes commonly used projections such as the plate carrée / equirectangular5 and the web Mercator6 projection.
So let’s start off by importing the Python libraries that we will be using:
import math
import numpy as npNowadays, the Earth as commonly modeled as an oblate spheroid7 also known as the reference ellipsoid. The equation for a spheroid is:
\[{\displaystyle {\frac {x^{2}+y^{2}}{a^{2}}}+{\frac {z^{2}}{c^{2}}}=1}\]
where \(a\) is the equitorial radius, and \(c\) is the distance from the center to the pole.
Source: Wikimedia CommonsFor an oblate spherioid (like the Earth), \(c < a\) and the flattening (\(f\)) is defined as: \[f=\frac {a-c}{a}\]
The Earth is most commonly modeled using the world geodetic system WGS 84 reference ellipsoid, which is defined with the following parameters:
a = 6378137.0 # m, semi-major axis (equatorial radius)
f = 1 / 298.257223563 # flatteningSolving for the semi-minor axis of the ellipsoid, \(c\) gives: \[c = a \cdot (1 - f)\]
which results in:
c = a * (1 - f) # m, semi-minor axis
print(f'semi-minor axis, c = {c:.6f} meters')semi-minor axis, c = 6356752.314245 metersIt is also helpful to calculate the ellipsoid’s eccentricity value, which is defined as:
\[e^{2}=2f-f^{2}\]
e2 = 2 * f - f**2
e = math.sqrt(e2)
print(f'e2 = {e2}')
print(f'e = {e}')e2 = 0.0066943799901413165
e = 0.08181919084262149Now that we have characterised the ellipsoid, we can calculate the surface area with:
\[A_{\text{oblate}}=2\pi a^{2}\ +{\frac {\pi c^{2}}{e}}\ln {\frac {1+e}{1-e}}\]
For the WGS84 ellipsoid parameters, this gives us a surface area of:
A_oblate = 2 * math.pi * a**2 + math.pi * c**2 / e * math.log((1 + e) / (1 - e))
print(f'Earth surface area = {A_oblate / 1e6:.6f} km^2')Earth surface area = 510065621.724088 km^2… which is close to the value of 510072000 km2 listed on Wikipedia.
Since calculating for a sphere is more straightforward than calculations for an ellipsoid, we solve for the radius of a spherical model that has the same surface area as the ellipsoid model. This radius is called the authalic radius (\(R_2\))
\[R_2 = \sqrt{\frac{A_{\text{oblate}}}{4 \pi}}\]
R_auth = math.sqrt(A_oblate / 4 / math.pi)
print(f'authalic radius (R_auth) = {R_auth:.6f} meters')authalic radius (R_auth) = 6371007.180918 metersFor area segments between two bands of constant latitudes (\(\phi_1\) and \(\phi_2\)), the Spherical segment formula can be used. The curved surface area of the spherical zone between two latitudes is given by: \[ A_{\text{zone}} = 2 \pi R_2 h \]
where \(h\) is the height of the segment: \[ h = R_2 (\sin \phi_2 - \sin \phi_1) \tag{1}\]
Constraining the area to be a patch (\(A_{\text{patch}}\)) between longitudes (\(\lambda_1 <= \lambda <= \lambda_2\)) gives:
\[ \begin{aligned} A_{\text{patch}} &= A_{\text{zone}} \frac{\lambda_2 - \lambda_1}{2 \pi} \\ &= R_2 h (\lambda_2 - \lambda_1) \end{aligned} \tag{2}\]
Written as a Python function:
def patch_area_single_rectangle(
R: float, # Authalic radius, in meters
lon1: float, # Minimum longitude, in degrees
lon2: float, # Maximum longitude, in degrees
lat1: float, # Minimum latitude, in degrees
lat2: float, # Maximum latitude, in degrees
) -> float:
# Convert from degrees to radians
lon1_rad = lon1 * (np.pi / 180)
lon2_rad = lon2 * (np.pi / 180)
lat1_rad = lat1 * (np.pi / 180)
lat2_rad = lat2 * (np.pi / 180)
h = R * (math.sin(lat2_rad) - math.sin(lat1_rad))
area_patch = R * h * (lon2_rad - lon1_rad)
return area_patchWe can try this function out for a few patches:
print(f'{(patch_area_single_rectangle(R=R_auth, lon1=-180, lon2=180, lat1=-90, lat2=90)*1e-6):.3e} km^2 is the area of the globe')
print(f'{(patch_area_single_rectangle(R=R_auth, lon1=0, lon2=180, lat1=-90, lat2=90)*1e-6):.3e} km^2 is the area of a (eastern) hemisphere')
print(f'{(patch_area_single_rectangle(R=R_auth, lon1=0, lon2=10, lat1=-90, lat2=90)*1e-6):.3e} km^2 is the area of a 10 degree longitude band')
print(f'{(patch_area_single_rectangle(R=R_auth, lon1=0, lon2=10, lat1=0, lat2=10)*1e-6):.3e} km^2 is the area of a 10 x 10 degree patch')5.101e+08 km^2 is the area of the globe
2.550e+08 km^2 is the area of a (eastern) hemisphere
1.417e+07 km^2 is the area of a 10 degree longitude band
1.230e+06 km^2 is the area of a 10 x 10 degree patchThis works for single patches, but we can adapt the function to efficiently estimate a (potentially irregular) grid of patches by accepting lists of latitude edges and longitudes edges:
\[\boldsymbol{A}_{patch} = \boldsymbol{w} \cdot \boldsymbol{h}^T\] \[\boldsymbol{w} = R_2 (\boldsymbol{\lambda}_2 - \boldsymbol{\lambda}_1)\] \[\boldsymbol{h} = R_2 (\sin \boldsymbol{\phi}_2 - \sin \boldsymbol{\phi}_1)\]
def patch_area(
R: float, # Authalic radius, in meters
lon_edges: list[float], # longitude edges, in degrees
lat_edges: list[float] # latitude edges, in degrees
) -> list[list[float]]:
# Convert from degrees to radians
lon_min = np.array(lon_edges[:-1]) * (np.pi / 180)
lon_max = np.array(lon_edges[1:]) * (np.pi / 180)
lat_min = np.array(lat_edges[:-1]) * (np.pi / 180)
lat_max = np.array(lat_edges[1:]) * (np.pi / 180)
h = np.reshape(
R * (np.sin(lat_max) - np.sin(lat_min)),
newshape=(-1, 1)
)
w = np.reshape(
R * (lon_max - lon_min),
newshape=(-1, 1)
)
area_patch = (w @ h.T).T # matrix multiplication (@ is * for mATrices)
return area_patchLet’s try it out, displaying the results on a globe:
lon_edges = range(-180, 180 + 1, 10)
lat_edges = range(-90, 90 + 1, 10)
areas = patch_area(R_auth, lon_edges, lat_edges)
# print(f'areas = {(areas * 1e-6)} km^2')
print(f'Total area = {(areas.sum() * 1e-6):.6G} km^2')Total area = 5.10066E+08 km^2import pydeck as pdk
default_view_state = pdk.ViewState(
latitude=45,
longitude=np.average(lon_edges),
zoom=0,
min_zoom=0,
)
view = pdk.View(
type="_GlobeView",
controller=True,
width='100%',
)
basemap_layer = pdk.Layer(
"GeoJsonLayer",
id="base-map",
data="https://d2ad6b4ur7yvpq.cloudfront.net/naturalearth-3.3.0/ne_50m_admin_0_scale_rank.geojson",
stroked=False,
filled=True,
extruded=False,
get_fill_color=[200, 200, 200],
get_line_color=[255, 255, 255],
)
elevation = 1e5
layer_data = [
{
"Longitude range": f'({lon_edges[ix]},{lon_edges[ix + 1]})',
"Latitude range": f'({lat_edges[iy]},{lat_edges[iy + 1]})',
"coordinates": [
[lon_edges[ix], lat_edges[iy], elevation],
[lon_edges[ix], lat_edges[iy+1], elevation],
[lon_edges[ix+1], lat_edges[iy+1], elevation],
[lon_edges[ix+1], lat_edges[iy], elevation],
[lon_edges[ix], lat_edges[iy], elevation]
]
}
for iy, lat in enumerate(lat_edges[:-1])
for ix, lon in enumerate(lon_edges[:-1])
]
# Append the calculated area.
layer_data = [
dict(d, area=f'{areas.flatten()[i] * 1e-6:.6g}')
for i, d in enumerate(layer_data)
]
polygon_layer = pdk.Layer(
"SolidPolygonLayer",
layer_data,
visible=True,
get_polygon="coordinates",
filled=True,
extruded=True,
wireframe=True,
get_fill_color=[255, 255, 0, 127],
get_line_color=[255, 0, 0],
auto_highlight=True,
pickable=True,
picking_radius=10,
)
tooltip = {"html": (
"<b>Longitude range:</b> {Longitude range}<br />"
"<b>Latitude range:</b> {Latitude range}<br />"
"<b>Area:</b> {area} km^2"
)}
deck = pdk.Deck(
views=[view],
initial_view_state=default_view_state,
layers=[
basemap_layer,
polygon_layer,
],
map_provider=None,
tooltip=tooltip,
# Note: set to True for the globe to be opaque
parameters={"cull": True},
)
deckThe globe is interactive. Roll your cursor over the patches to see the calculation results. Click and drag to rotate the globe.
In this post I’ve presented an approach for calculating patch areas on the Earth’s surface. In a future post I’ll expand on this to calculate the areas of every pixel in a projected image.
I really dislike when the term “resolution” is used instead of pixel size, but I’ll leave that discussion for another time…↩︎
But that doesn’t stop ChatGPT from trying!↩︎
Strangely, neither the website nor the publication describing the dataset list the actual pixel size. To determine it, I ended up using the command line program gdalinfo to inspect a sample tile obtained via the download page.↩︎
The sensitivity of accuracy to reprojection might be worth exploring in a future post.↩︎
a.k.a. the lat/lon projection or unprojected projection↩︎
the de facto standard for web mapping applications↩︎
i.e. a flattened sphere↩︎
